sockets

Sockets

TAPARIA Sockets are:-

• Forged from high grade Chrome Vanadium steel.

• Scientifically heat treated to give maximum strength and wer resistance.

• Nickel Chrome plating finish to enable rust prevention and good looks.

Product Range

first_pro

Sockets 1/4" Square Drive

Generally Conforming to IS 7381-1986

  • View Details
    stubby
    PROD. NO. FIG. NO. A B C ΘD ΘE A/F WT. GMS
    A 4 H 1 25 13 12 6.8 12 4 10
    A 4.5 H 1 25 13 12 7.3 12 4.5 10
    A 5 H 1 25 13 12 8 12 5 10
    A 5.5 H 1 25 13 12 8.5 12 5.5 10
    A 6 H 1 25 13 12 9 12 6 10
    A 7 H 1 25 13 12 10.5 12 7 10
    A 8 H 1 25 13 12 11.7 11 8 10
    A 10 H 3 25 11 14 14 12 10 10
    A 11 H 3 25 11 14 16 14 11 20
    A 12 H 3 25 11 14 17 15 12 20
    A 13 H 3 25 11 14 18 16 13 25
    A 14 H 3 25 11 14 19 17 14 30
first_pro

Socket 3/8" Square Drive

Generally Conforming to IS 7381-1986

  • View Details
    socket 3/8
    PROD. NO. FIG. NO. A B C ΘD ΘE A/F WT. GMS
    B 6 H 1 28 16 12 10.3 17 6 25
    B 7 H 1 28 16 12 11 17 7 25
    B 8 H 1 28 16 12 12 17 8 25
    B 9 H 1 28 16 12 13.3 17 9 25
    B 10 H 1 28 16 12 14.5 17 10 25
    B 11 H 3 28 16 12 16 17 11 25
    B 12 H 3 28 12 16 17 15.5 12 25
    B 13 H 3 28 12 16 17.8 16.5 13 25
    B 14 H 3 28 12 16 19.7 17 14 25
    B 17 H 3 30 12 18 23.7 20 17 45
    B 19 H 3 30 12 18 26 23 19 60
    B 21 H 3 30 12 18 28 25 21 70
    B 22 H 3 30 12 18 29.7 26 22 80
first_pro

Sockets 12.7mm - 1/2" Square Drive (Flank Drive)

Generally Conforming to IS 6131-1980 & 7381-1986

  • View Details
    HEXAGONAL & BIHEXAGONAL
    PROD. NO. FIG. NO. A B C ΘD ΘE A/F WT. GMS
    8 1 36 20 16 12.0 22 8 45
    9 1 36 20 16 13.0 22 9 45
    10 1 36 20 16 16.0 22 10 45
    11 1 36 20 16 17.5 22 11 48
    12 1 36 20 16 18.7 22 12 50
    13 1 36 20 16 20.0 22 13 52
    14 1 36 20 16 21.3 22 14 52
    15 2 36 - - 22.5 - 15 52
    16 2 38 - - 23.5 - 16 52
    17 2 38 - - 25.0 - 17 75
    18 2 38 - - 25.5 - 18 70
    19 2 38 - - 27.5 - 19 90
    21 2 40 - - 28.9 - 21 104
    22 2 40 - - 31.0 - 22 125
    23 2 40 - - 31.3 - 23 120
    24 3 43 18 25 32.5 30 24 130
    26 3 43 18 25 35.2 30 26 140
    27 3 43 18 25 36.4 30 27 150
    28 3 43 18 28 37.7 30 28 165
    29 3 46 18 28 38.9 30 29 165
    30 3 46 18 28 40.4 30 30 185
    32 3 46 17 29 42.7 30 32 195
    33 3 46 17 29 43.9 30 33 195
    34 3 46 17 29 45.2 30 34 190
first_pro

Exel Sockets 12.7mm (1/2") Square Drive

Generally Conforming to IS 6131-1980 & 7381-1986

  • View Details
    HEXAGONAL & BIHEXAGONAL
    PROD. NO. FIG. NO. A B C ΘD ΘE A/F WT. GMS
    8 1 36 20 16.5 13.5 22 8 50
    9 1 36 20 16.5 14.5 22 9 50
    10 1 36 20 15.7 14.5 22 10 50
    11 1 38 21.5 16.5 16.7 22 11 50
    12 1 38 21.5 16.5 17.8 22 12 50
    13 1 38 21.5 16.5 19.0 22 13 50
    14 1 38 21.5 16.5 20.2 22 14 50
    15 1 38 21.5 16.5 21.0 22 15 50
    16 3 38 16 22 21.8 20.5 16 50
    17 3 38 16 22 23.8 22 17 60
    18 3 38 16 22 25.8 22 18 80
    19 3 38 16 22 25.8 22 19 70
    20 3 38 16 22 27.8 25 20 80
    21 3 38 16 22 28.0 25 21 70
    22 3 38 16 22 29.8 26 22 90
    23 3 38 16 22 31.8 28 23 115
    24 3 38 16 22 31.8 28 24 105
    25 3 40 17 23 33.7 30 25 125
    26 3 42 17 25 35.5 31 26 158
    27 3 42 17 25 35.8 32 27 158
    28 3 44 17 27 37.6 33 28 188
    29 3 44 17 27 38.0 33 29 180
    30 3 44 16 28 39.5 34 30 200
    32 3 44 16 28 41.5 36 32 225
first_pro

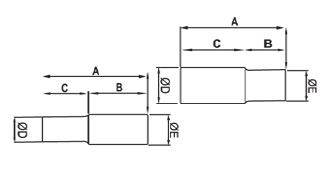

Deep Sockets 12.7mm - 1/2" Square Drive

  • View Details
    deep
    PROD. NO. FIG. NO. A B C ΘD ΘE A/F WT. GMS
    L8H 1 76 42 34 14 22 8 110
    L10H 1 76 42 34 16 22 10 110
    L11H 1 76 42 34 17 22 11 110
    L12H 1 76 42 34 18 22 12 110
    L13H 1 76 42 34 19 22 13 115
    L14H 1 76 42 34 20.5 22 14 120
    L15H 3 76 30 46 22 22 15 120
    L16H 3 76 30 46 22 22 16 110
    L17H 3 76 30 46 24 22 17 130
    L18H 3 76 30 46 26 24 18 160
    L19H 3 76 30 46 26 24 19 150
    L20H 3 76 30 46 28 25 20 175
    L21H 3 76 30 46 28 25 21 165
    L22H 3 76 30 46 30 26 22 195
    L24H 3 76 30 46 32 28 24 215
    L27H 3 76 30 46 36 32 27 280
    L30H 3 76 30 46 40 28 34 350
first_pro

Heavy Duty Hexagonal Socket 12.7mm - Extra Long Socket 1/2" Square Drive

  • View Details
    PROD. NO. FIG. NO. A B C ΘD ΘE A/F WT. GMS
    HD 10 1 36 20 16 17.0 22.5 10 55
    HD 11 1 36 20 16 18.5 22.5 11 60
    HD 13 1 38 21 17 21.2 24.0 13 80
    HD 14 1 38 21 17 22.5 24.0 14 80
    HD 17 2 38 - - 26.5 - 17 85
    HD 19 2 38 - - 29.3 - 19 120
    HD 22 2 38 - - 33.3 - 22 170
    EL 10 - 150 18 15 16.0 23.0 10 174
    LD 18 2 80 - - 26.5 - 18 165
    LD 24 4 80 25 55 34.3 31.5 24 280
first_pro

Impact Sockets Hexagonal 12.7mm - 1/2 Square Drive

Generally Conforming to IS 7993-1988

  • View Details
    HEXAGONAL & BIHEXAGONAL
    PROD. NO. FIG. NO. A B C ΘD ΘE A/F WT. GMS
    IM8 1 36 21 15 13.5 25 8 60
    IM9 1 36 21 15 14.5 25 9 65
    IM10 1 36 21 15 17.0 25 10 65
    IM11 1 36 21 15 18.5 25 11 65
    IM12 1 36 21 15 20.0 25 12 65
    IM13 1 36 21 15 21.5 25 13 75
    IM14 1 36 21 15 22.5 25 14 70
    IM15 1 36 21 15 24.0 25 15 80
    IM16 2 38 - - 25.0 25 16 80
    IM17 2 38 - - 26.5 26.5 17 95
    IM18 2 38 - - 28.0 28 18 105
    IM19 2 38 - - 30.0 30 19 120
    IM20 3 40 17 23 31.0 30 20 125
    IM21 3 40 17 23 32.0 30 21 130
    IM22 3 40 17 23 33.5 30 22 140
    IM23 3 43 18 25 35.0 30 23 165
    IM24 3 43 18 25 36.0 30 24 170
    IM26 3 43 18 25 38.9 30 26 175
    IM27 3 43 18 25 40.0 30 27 180
    IM28 3 46 19 27 42.5 30 28 200
    IM29 3 46 19 27 42.5 30 29 215
    IM30 3 46 19 27 44.0 30 30 220
    IM31 3 46 19 27 44.5 30 31 225
    IM32 3 46 19 27 46.5 30 32 245
first_pro

Sockets 12.7mm - 1/2" Square Drive Spark Plug (C.R.V)

  • View Details
    PROD. NO. FIG. NO. A B C ΘD ΘE A/F WT. GMS
    SP 16 1 36 20 16 14.0 22.5 8 50
    SP 21 1 36 20 16 15.0 22.5 9 50
first_pro

Hex Bit Sockets - 1/2" Square Drive

  • View Details
    PROD. NO. FIG. NO. A B C ΘD ΘE A/F WT. GMS
    BSH4 - - - - - - - -
    BSH5 - - - - - - - -
    BSH6 - - - - - - - -
    BSH7 - - - - - - - -
    BSH8 - - - - - - - -
    BSH10 - - - - - - - -
    BSH12 - - - - - - - -
    BSH14 - - - - - - - -
    BSH17 - - - - - - - -
    BSH19 - - - - - - - -
first_pro

Torx Bit Sockets - 1/2" Square Drive

  • View Details
    PROD. NO. FIG. NO. A B C ΘD ΘE A/F WT. GMS
    BST10 - - - - - - - -
    BST20 - - - - - - - -
    BST25 - - - - - - - -
    BST27 - - - - - - - -
    BST30 - - - - - - - -
    BST40 - - - - - - - -
    BST45 - - - - - - - -
    BST50 - - - - - - - -
    BST55 - - - - - - - -
    BST60 - - - - - - - -
first_pro

Sockets 19mm (3/4") Square Drive

Generally Conforming to IS 7381-1986

  • View Details
    stubby
    HEXAGONAL & BIHEXAGONAL
    PROD. NO. FIG. NO. A B C ΘD ΘE A/F WT. GMS
    C19 - - - - - - - -
    C21 - - - - - - - -
    C22 1 50 30 20 33.0 36 22 215
    C24 1 50 30 20 35.0 36 24 210
    C27 2 51.5 - - 38.0 - 27 220
    C28 3 52 21 31 40.0 36 28 235
    C29 3 52 21 31 40.0 38 29 240
    C30 3 54 21 33 42.0 38 30 265
    C32 3 56 21 35 44.0 38 32 300
    C34 3 58 22 36 46.0 38 34 320
    C36 3 58 20 38 50.0 42 36 395
    C38 3 60 20 40 56.0 45 38 450
    C41 3 64 24 40 56.0 45 42 535
    C42 3 64 22 42 58.0 45 42 590
    C46 3 68 21 47 62.0 48 46 685
    C50 3 72 24 48 68.0 48 50 800
    C55 3 76 26 48 74.0 48 55 955
    C60 3 78 30 48 78.0 48 60 910
    C65 3 85 30 55 86.0 48 65 1570
    C70 3 85 30 55 91.5 48 70 1680
first_pro

Sockets 1" Square Drive

Generally Conforming to IS 7381-1986

  • View Details
    stubby
    PROD. NO. FIG. NO. A B C ΘD ΘE A/F WT. GMS
    D36 3 60 20 40 50 46 36 400
    D38 3 65 22 43 54 46 38 520
    D41 3 65 25 40 54 46 46 520
    D46 3 75 26 49 65 50 46 830
    D50 3 75 26 49 69 56 50 1050
    D55 3 80 28 52 75 56 55 1200
    D60 3 84 30 54 81 56 60 1350
    D65 3 88 30 58 87 56 65 1550
    D70 3 94 30 64 93 68 75 2500
    D75 3 98 34 64 93 68 70 2100
    D80 3 103 34 69 105 68 80 2600

Sockets
