Pipe Wrench (Stillson Type)

Generally Conforming to IS 4003 (I)1978

• View Details


  PROD. NO.	D	T	L	WT. GMS
  1272	33	15	250	500
  1273	42	19	300	750
  1274	48	21	350	1000
  1275	60	24	450	1540
  1276	73	28	600	2920
  1277	90	34	900	5880

Universal Pipe Wrench

• View Details


  PROD. NO.	A	B	C	D	WT. GMS
  1510	38	17	275	310	690
  2014	52	21	360	420	1244

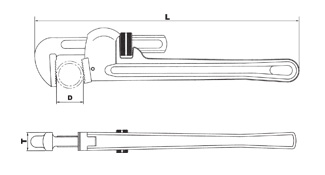

Heavy Duty Pipe Wrench

Generally Conforming to IS 4003 Part II 1986

Drop forged from Chrome Molybdenum (Cr Mo) Steel. Precision machined jaw teeth with appropriate teeth angle enables positive grip on the job.Differential hardening of teth and body of the jaw enables high torque and wear resistance of the jaw teeth.

Handle made from ductile cast iron which enables higher torque values for heavy duty pipe wrenches.

• View Details


  PROD. NO.	NOM. PIPE	T	L	WT. GMS
  HPW 08	35	15	200	4200
  HPW 18	76	26	450	2400
  HPW 10	49	17	250	850
  HPW 24	33	26	600	4100
  HPW 12	60	23	300	1100
  HPW 36	140	37	900	8800
  HPW 14	60	23	350	1650
  HPW 48	166	37	1200	13800

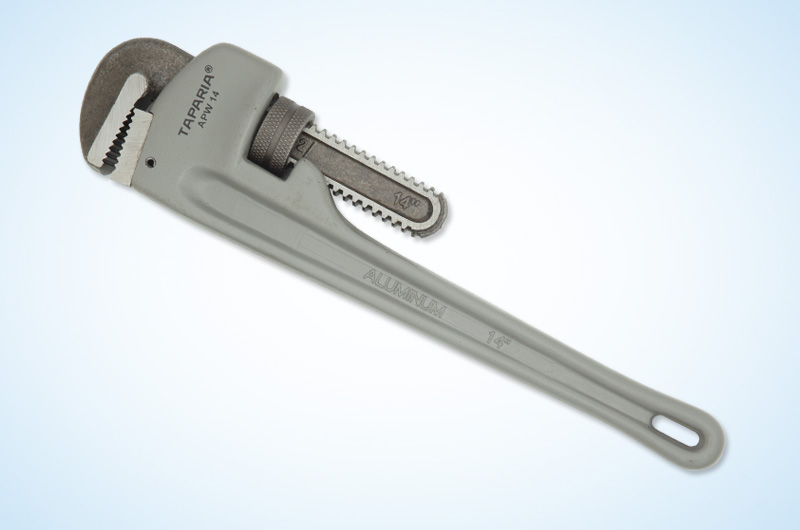

Aluminium Handle Pipe Wrench

Generally Conforming to IS 4003 Part II 1986

Drop forged jaws and differential hardened teeth and body of the jaw enables high torque and high wear resistance of the jaw teeth. Precision machined jaw teeth with appropriate teeth angle enables positive grip on the job.Handle made from special grade Aluminium Alloy which reduces the weight of the AL.PIPE WRENCH by upto 40% as compared to respective sizes of heavy duty pipe wrenches.

• View Details


  PROD. NO.	NOM. PIPE	T	L	WT. GMS
  APW 10	49	17	250	600
  APW 24	90	33	600	2500
  APW 14	60	23	350	1000
  APW 36	140	37	900	4750
  APW 18	76	26	450	1500
  APW 48	166	37	1200	7700

Chain Pipe Wrench

Generally Conforming to IS 4123 - 1982

Drop forged jaws with high - grade steel.An accurately machined jaw teeth on both sides of the jaw provides firm gripping and are easy for reverse operation. Scientifically heat - treated to give maximum strength and wear resistance.

• View Details


  PROD. NO.	NOM. PIPE SIZE MAX ΘD	L	L1	E	T	WT. GMS
  CPW04	CPW04	900	165	80	12	1100
  CPW06	CPW06	1000	180	90	13	9500
  CPW08	CPW08	1200	190	90	14	11800
  CPW10	CPW10	1300	215	95	15	13500
  CPW12	CPW12	1400	215	95	15	14500
  CPW16	CPW16	1585	215	95	15	16500

Spares for Chain Pipe Wrench

• View Details

  PROD. NO.	NOM. PIPE ΘD	T	L	WT. GMS
  CPW 04 C	-	-	675	-
  CPW 06 C	-	-	825	-
  CPW 08 C	-	-	975	-
  CPW 10 C	-	-	1125	-
  CPW 12 C	-	-	1275	-

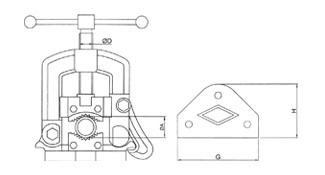

Pipe Vices

Generally Conforming to IS 6007 - 1971

Body made from malleable cast iron.Jaws are drop forged and differentially Hardened.Hardness on the body of the jaw : 40 to 45 HRC & Teeth of the Jaw is Above 50 HRC.Vertical upright section of the base is provided with holes for mounting of the frame.Accurately machined jaws provide firm grip on the pipe.

Body of the pipe vice painted and jaw blackodised to guard against rusitng.

• View Details


  PROD. NO.	NOM. PIPE SIZE ΘA	ΘD	T	L	WT. GMS
  PV 00	10-40	16	95	60	1100
  PV 01	10-60	24	145	105	4250
  PV 02	10-90	24	190	105	5600
  PV 03	15-115	24	215	120	7800
  PV 04	15-165	30	260	160	10000
